Versa X/X8
1500mm Custom Frame
Quick-release motor-boom assemblies and landing gear. Three-location 12mm payload rail system, spacious avionics mid-deck with 4 customizable panels (lighting, cameras, antenna, etc)

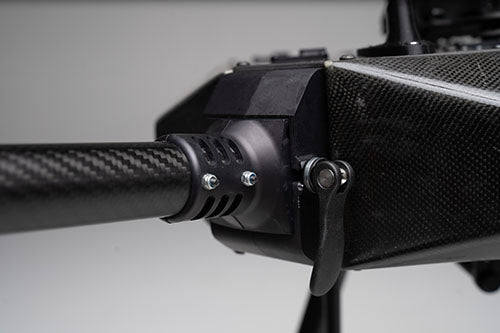

Quick-release / plug-in booms
Strong, positive locking, removable booms, allowing for larger motors and larger payloads

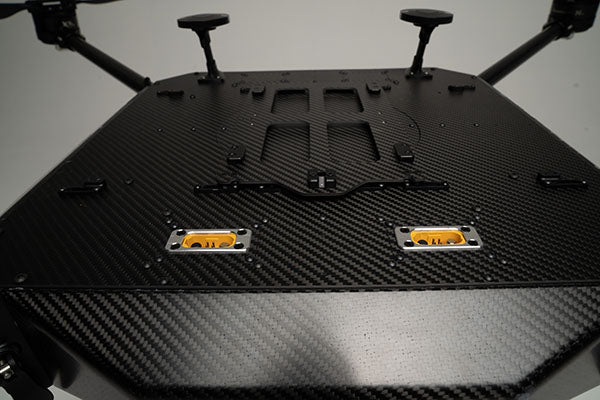

Customizable Access panels
Four perimeter panels accommodate customization such as lighting, cameras, collision-avoidance, and more

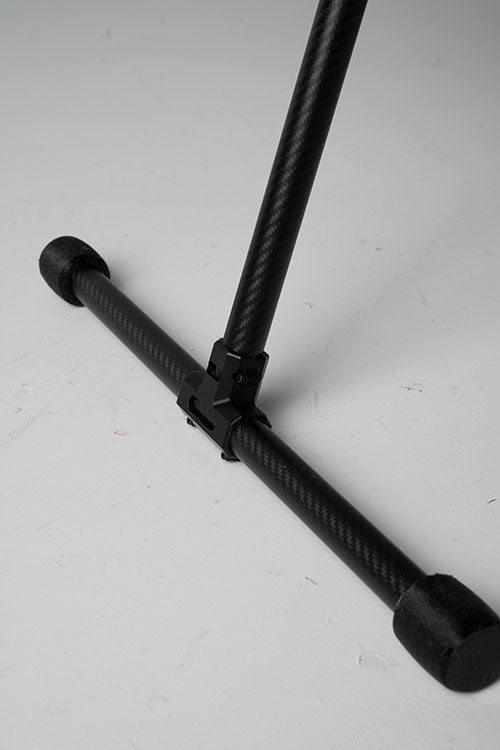

Heavy Duty Removable Landing Gear
Quick-release landing gear available in T-style, post, or custom configurations

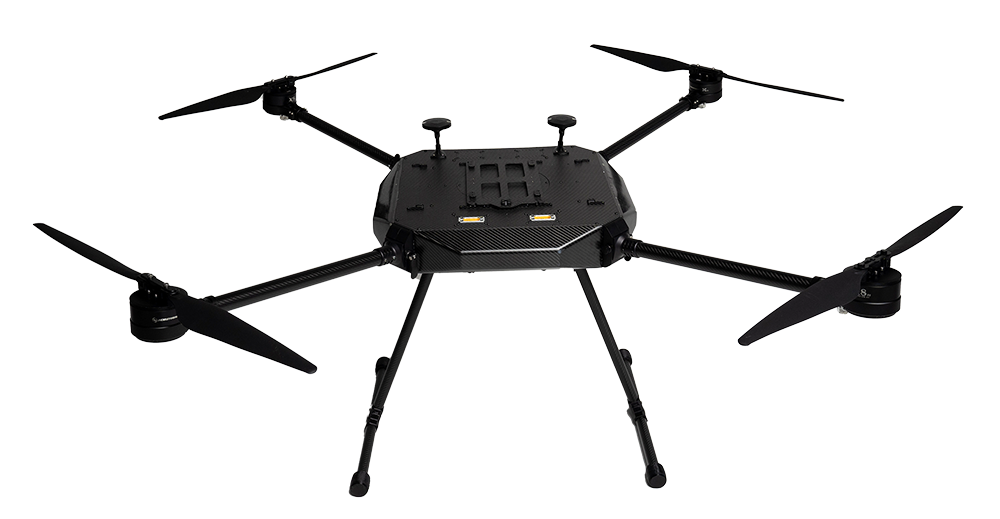

CamFlite Versa X/X8
Specifications
Motors: 4-T-Motor U8II
Propeller size: 28-30”
Weight: ~24.5 lbs. / ~11 kg
Max payload: ~15 lbs. / ~6.8 kg
MTOW: 55 lbs. / 25 kg
Power: 16Ah to 44Ah @ 44v
Flight time: ~10 – 25 minutes
Control range: ~5 miles / ~8 km
Max speed: 65 mph / 100 km/h
Dust & water-resistant
Power plant(s) 1,000 hour TBO
Maximum thrust ~64 lbs. / ~29 kg
Specifications
Motors: 8-T-Motor U8II
Propellers size: 28-30″
Weight: ~29.5 lbs. / ~14.4 kg
Max Payload: ~15 lbs. ~6.8 kg
MTOW2: 55+ lbs. / 25 kg
Power: 16Ah to 44Ah @ 44v1
Flight time: ~10 – 35 minutes
Control range: ~ 5 miles / ~8 km
Max speed: 65 mph / 100 km/h
Dust & water-resistant
Power plant(s) 1,000 hour TBO
Maximum thrust ~128 lbs. / ~58 kg
Additional Specifications
Diagonal Wheelbase: 1,500mm
Autopilot: Pixhawk 2.1 / CUBE, Orange (Made in Taiwan)
FPV Video: High Definition FPV Video
Ingress Protection: Water & Dust Protected (IP Testing In Progress)
Ground Station Controller: your choice of radio
External Power: 5v, 12v, 24v on top and bottom of the frame
External Communications: SBus / Serial
External Video: Supported through external HDMI Connector
CamFlite Vehicles Include
Versa X/X8 vehicle, your choice of command and control systems, and a custom shipping container

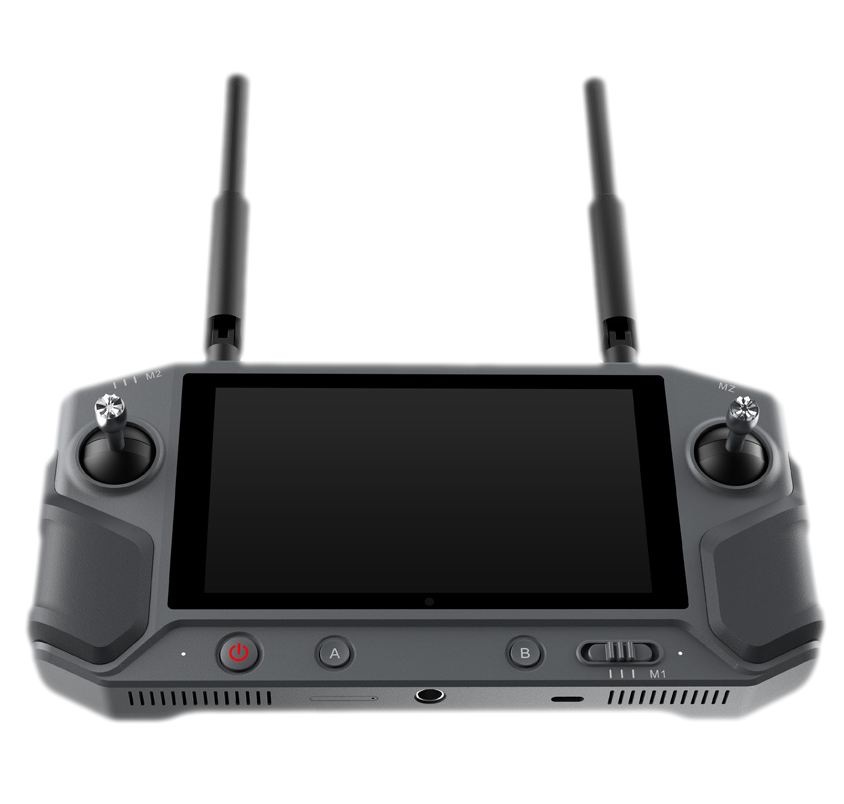

Remote Control System
Comes with custom QGC software, charger, and all support equipment, installed and tested

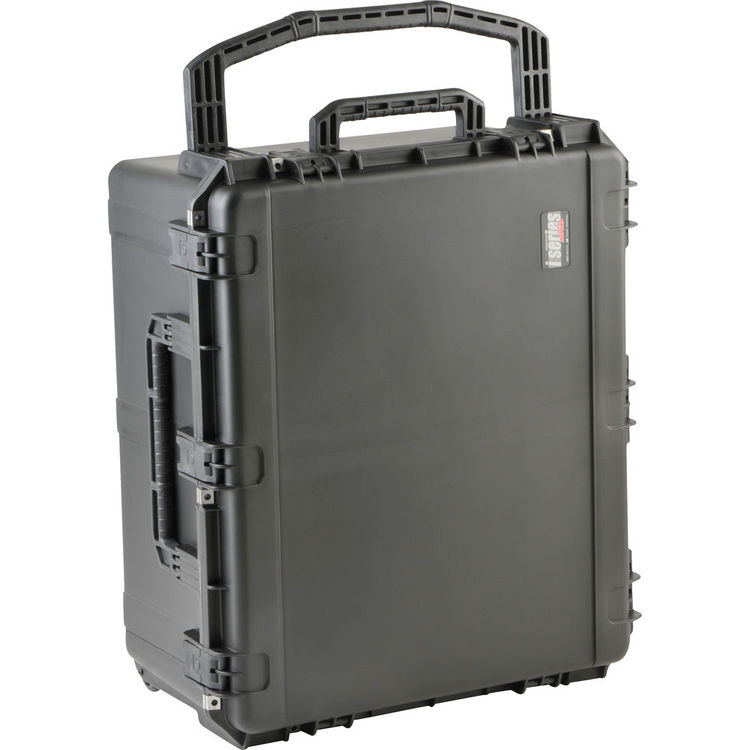

Versa Shipping container
Full protection for Versa, remote control, landing gear, and support equipment
